AD8531ARTZ-REEL7 IC OPAMP GP 1 CIRCUIT SOT23-5 Analog Devices Inc.

Name: AD8531ARTZREEL7 IC OPAMP GP 1 CIRCUIT SOT235 Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : AD8531ARTZ-REEL7

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 5V/µs

Gain Bandwidth Product : 3 MHz

-3db Bandwidth : -

Current - Input Bias : 5 pA

Voltage - Input Offset : 25 mV

Current - Supply : 750µA

Current - Output / Channel : 250 mA

Voltage - Supply Span (Min) : 2.7 V

Voltage - Supply Span (Max) : 6 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

GENERAL DESCRIPTION

The AD8531, AD8532, and AD8534 are single, dual, and quad rail-to-rail input/output single-supply amplifiers featuring 250 mA output drive current. This high output current makes these amplifiers excellent for driving either resistive or capacitive loads. AC performance is very good with 3 MHz bandwidth, 5 V/μs slew rate, and low distortion. All are guaranteed to operate from a 3 V single supply as well as a 5 V supply.

FEATURES
Single-supply operation: 2.7 V to 6 V
High output current: ±250 mA
Low supply current: 750 μA/amplifier
Wide bandwidth: 3 MHz
Slew rate: 5 V/μs
No phase reversal
Low input currents
Unity gain stable
Rail-to-rail input and output

APPLICATIONS
Multimedia audio
LCD drivers
ASIC input or output amplifiers
Headphone drivers

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Instrumentation Amplifier
Series	AD8531
Product	Precision Amplifiers
Packaging	Reel
Unit-Weight	0.001058 oz
Mounting-Style	SMD/SMT
Output-Type	Rail to Rail Input/Output
Number-of-Channels	1 Channel
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	0.7 mA
Supply-Voltage-Max	6 V
Supply-Voltage-Min	2.7 V
Package-Case	SOT-23-5
Ib-Input-Bias-Current	60 pA
Vos-Input-Offset-Voltage	25 mV
PSRR-Power-Supply-Rejection-Ratio	55 dB
Output-Current-per-Channel	250 mA
CMRR-Common-Mode-Rejection-Ratio	47 dB
GBP-Gain-Bandwidth-Product	3 MHz
SR-Slew-Rate	5 V/us
en-Input-Voltage-Noise-Density	45 nV/sqrt Hz at 5 V
Voltage-Gain-dB	98.06 dB

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
AD8531ARTZ-REEL Amplifier Circuits	250 mA Output, Low Cost, Single-Supply Amplifier	Analog Devices Inc	AD8531ARTZ-REEL7 vs AD8531ARTZ-REEL

Descriptions

General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5

OP Amp Single GP R-R I/O 6V Automotive 5-Pin SOT-23 T/R

Precision Amplifiers 250mA Output Dual SGL-Supply

China AD8531ARTZ-REEL7 IC OPAMP GP 1 CIRCUIT SOT23-5 Analog Devices Inc. wholesale

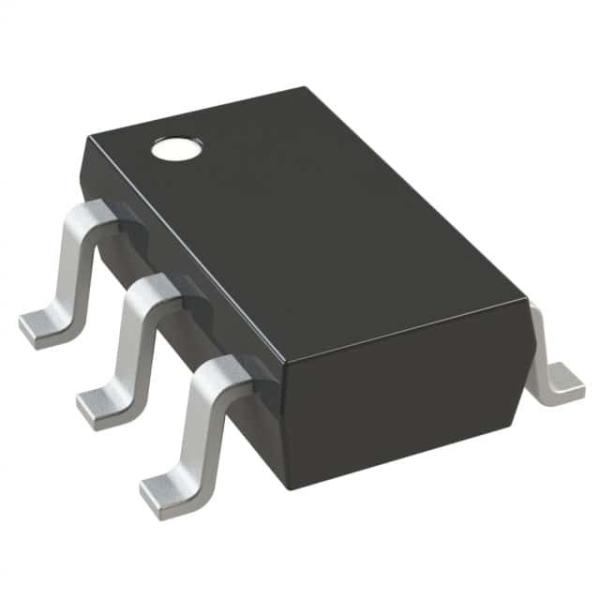

AD8531ARTZ-REEL7 IC OPAMP GP 1 CIRCUIT SOT23-5 Analog Devices Inc. Images
